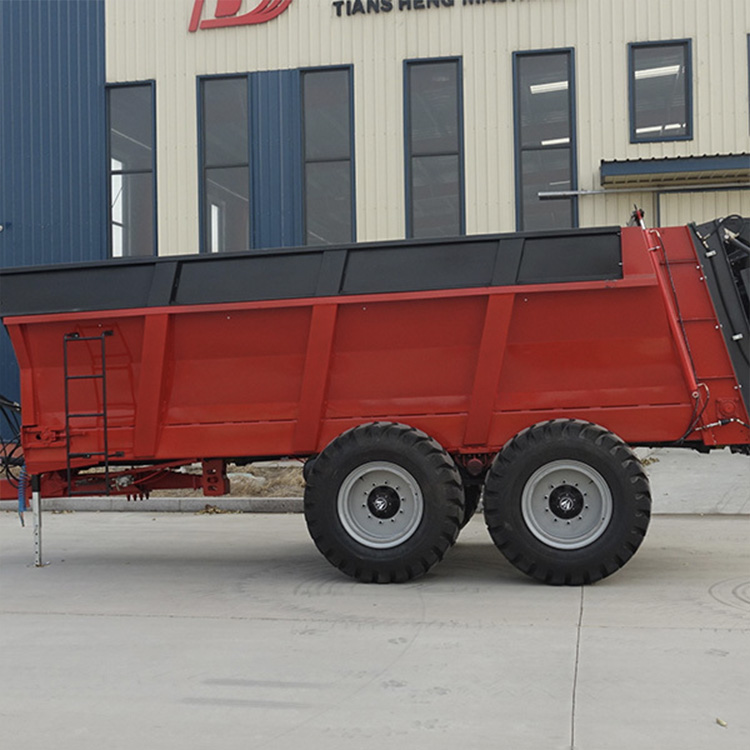

Tiansheng Machinery 2FGH-20S double vertical spiral manure spreader, manure spreader, fertilizer spreader

Serial Number

Item

Unit

Specification

1

Model Name

/

2FGH-20S Fertilizer Spreader

2

Structural Type

/

Box Type

3

Operation Method

/

Rear Throw

4

Hopper Inner Dimensions (Length × Width × Height)

mm

6400×2380×1310

5

Hopper Capacity

m³

20

6

Maximum Payload

kg

20000

7

Matched Power Value (Range)

kW

80-150

8

Spreading Device Type

/

Vertical Double Spiral Spreading

9

Fertilizer Conveying Method

/

Hydraulic Double Chain Row Push

10

Spreading Width

m

≥8

11

Number of Load-Bearing Axles

pcs

2

12

Track Width

mm

2400

13

Tire Specifications

/

500-60/22.5

14

Number of Tires

pcs

4

15

Overall Dimensions (Length × Width × Height)

mm

9713*3742*3021
