Product Introduction
The 1BJX series hanging middle harrow is mainly suitable for post-cultivation soil breaking, pre-sowing land preparation, soil loosening, soil-fertilizer mixing, and stubble removal in light soil. This machine features a reasonable structure, durability, ease of use, easy maintenance, strong soil breaking ability, and a flat surface after harrowing.

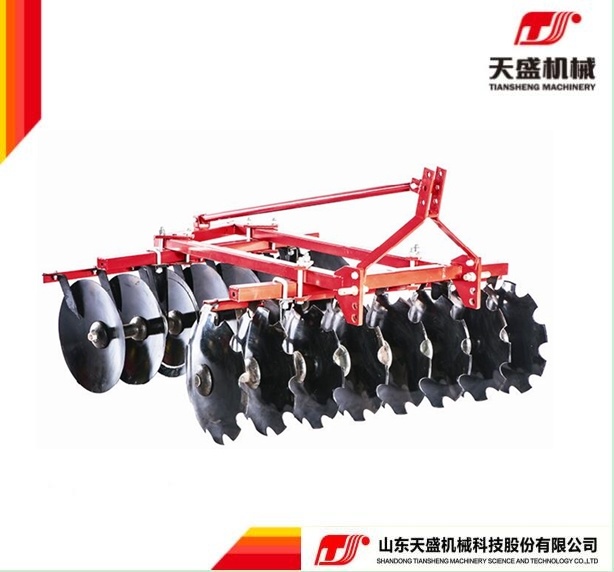

Tiansheng Machinery 1BJX Series Hanging Offset Medium-sized Disc Harrow Parameters
|
Model
|
Unit
|
1BJX-1.8
|
1BJX-2.0
|
1BJX-2.2
|
1BJX-2.4
|
1BJX-2.5
|
|
Working Width
|
m
|
1.8
|
2.0
|
2.2
|
2.4
|
2.5
|
|
Working Depth
|
mm
|
140
|
140
|
140
|
140
|
140
|
|
Number of Harrow Discs
|
|
16
|
18
|
20
|
22
|
24
|
|
Disc Diameter
|
mm
|
560(610)
|
560(610)
|
560(610)
|
560(610)
|
560(610)
|
|
Total Weight
|
kg
|
390
|
434
|
463
|
604
|
760
|
|
Matching Power
|
hp
|
45
|
50
|
55~65
|
65~75
|
80
|
|
Hitch Type
|
Three-point Hitch
|
|||||
