Product Introduction

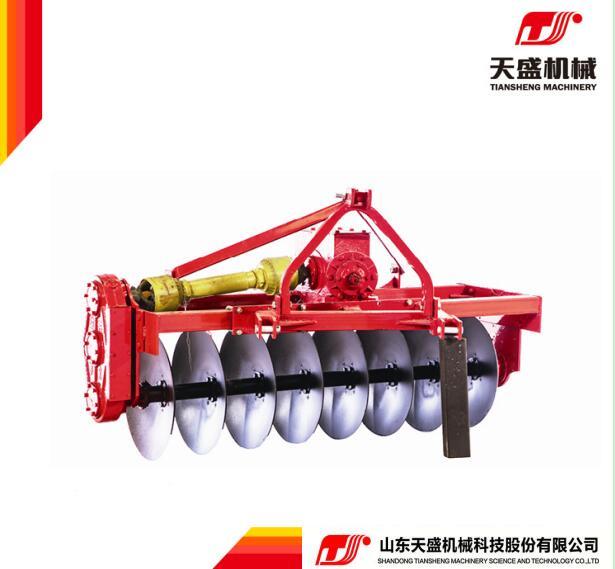

The 1LYQ series driven disc plow uses a tractor's three-point hitch for attachment. During operation, power is transmitted from the tractor's PTO to the disc plow gearbox, driving the disc plow blades to rotate. This driven disc plow is mainly suitable for paddy field cultivation and features no grass entanglement, high work quality, and high work efficiency.
Tiansheng Machinery 1LYQ Series Driven Disc Plow Parameters
| Model | Unit | 1LYQ-422 | 1LYQ-522 | 1LYQ-622 | 1LYQ-722 | 1LYQ-822 |
| Overall Dimensions | mm | 965*1365*1050 | 1075*1585*1050 | 1210*1805*1050 | 1325*2025*1050 | 1440*2245*1050 |
| Working Width | m | 0.88 | 1.1 | 1.32 | 1.54 | 1.76 |
| Plowing Depth | mm | 200-240 | 200-240 | 200-240 | 200-240 | 200-240 |
| Input Shaft Speed | r/min | 540-720 | 540-720 | 540-720 | 540-720 | 540-720 |
| Blade Shaft Speed | r/min | 90-120 | 90-120 | 90-120 | 90-120 | 90-120 |
| Matching Power | hp | 18-22 | 25-30 | 40-50 | 50-60 | 60-70 |
