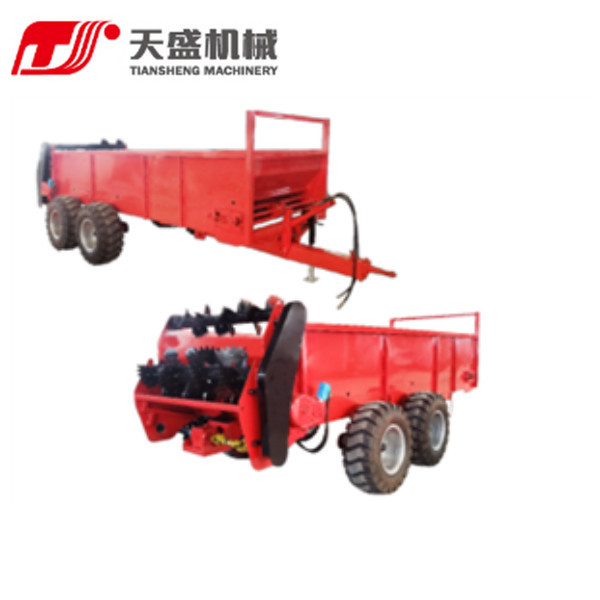

The Shandong Tiansheng Machinery Science and Technology Co., Ltd. double horizontal spiral fertilizer spreader utilizes the tractor's rear output power to drive the rotation of the chain conveyor in the hopper. The chain conveyor speed is hydraulically adjustable. High-speed rotating crushing wheels are used for crushing and returning to the field, achieving large-scale unified operation, reducing labor intensity, improving fertilization efficiency, and improving the soil environment. Suitable for spreading wet manure, dry manure, fresh manure, organic fertilizers, and farm manure.
|
Fertilizer Spreader Model |
2FGH-10HB |
|
Fertilizer Conveying Method |
Hydraulically driven chain conveyor for fertilizer transport |
|
Fertilizer Spreading Method |
Transmission shaft drives gearbox and spreading device to spread fertilizer |
|
Unladen Weight |
4500kg |
|
Maximum Hopper Capacity |
10 m³ |
|
Maximum Payload |
8000 kg |
|
Hitch Type |
Trailed |
|
Tire Specifications |
16/70-20-14 |
|
Track Width |
2430 mm |
|
Matching Tractor Horsepower |
≥95 hp |
