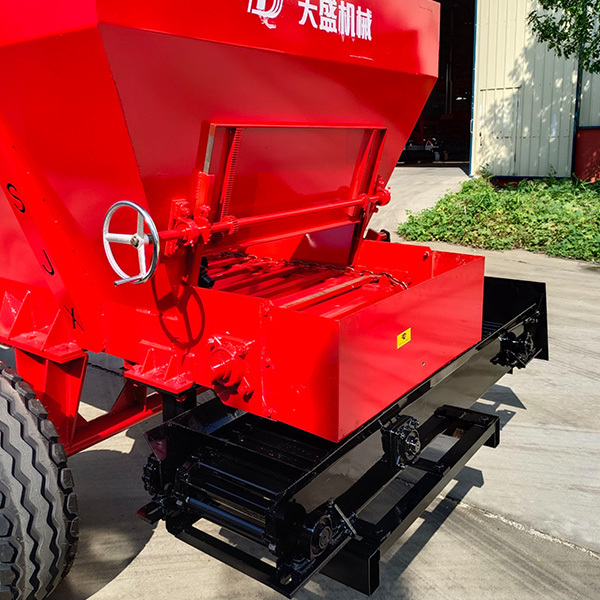

1. The discharge port adjustment valve is humanized in design, allowing end-users to adjust the size of the fertilizer discharge port according to their different fertilizer output requirements.
2. The design of the adjustment valve controls the conveying speed of the chain. The larger the gear, the faster the chain conveying speed and the larger the fertilizer feeding flow rate, and vice versa.
3. Double disc broadcasting or single horizontal spiral sprinkling can also be selected; it's a versatile machine.
4. It has a built-in hydraulic system, adjustable linkage speed, and adjustable fertilizer discharge port size.
5. The reducer ensures more stable machine operation. While slowing down the fertilizer feeding speed, it allows for multi-functional powder fertilizer sprinkling.
|
Serial Number |
Item |
Unit |
Specification |
|
1 |
Model Name |
/ |
3-cubic-meter Fertilizer Spreader |
|
2 |
Structural Type |
/ |
Box-type |
|
3 |
Operation Method |
/ |
Rear Throw |
|
4 |
Hopper Capacity |
m³ |
3 |
|
5 |
Overall Dimensions |
mm |
4500x1800x1920 |
|
6 |
Matched Power Value (Range) |
HP |
40-80 |
|
7 |
Sprinkling Device Type |
/ |
Rear-mounted vertical double disc spreader |
|
8 |
Fertilizer Conveying Method |
/ |
Hydraulic chain plate push |
|
9 |
Sprinkling Width |
m |
≥6 |
|
10 |
Number of Load-bearing Axles |
pcs |
1 |
|
11 |
Hydraulic Oil |
L |
80 |
|
12 |
Tire Model |
|
11.5/80-15.3 |
