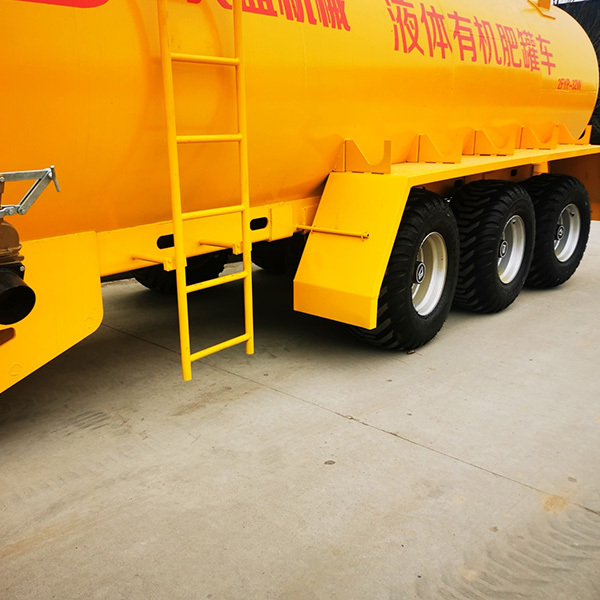

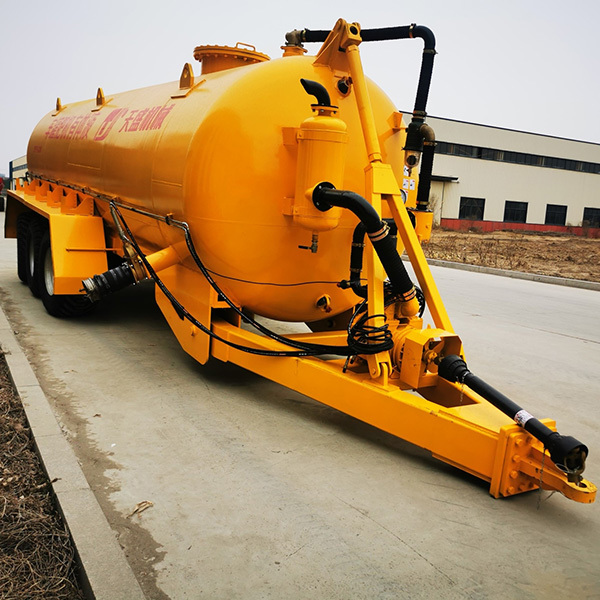

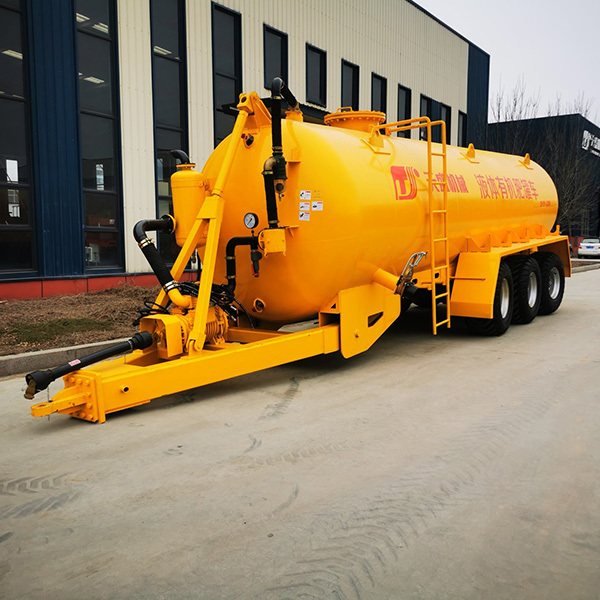

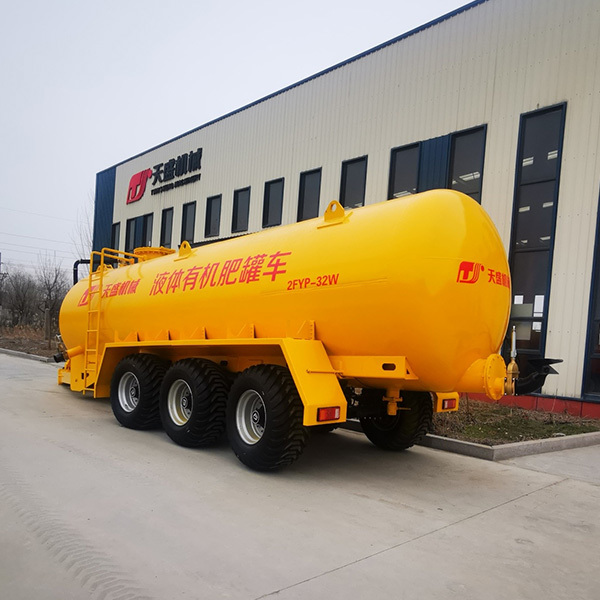

Tiansheng Machinery 2FGYP-32 Liquid Fertilizer Application Tank Truck, Liquid Fertilizer Spreader, Sewage Sludge Application Tank Truck, Sewage Sludge Returning

Product Features

1. Purely imported main pump, large displacement, high efficiency, stable and reliable, driven by tractor rear power output.

2. Purely imported overload protection device protects main components from damage during fertilizer suction and application.

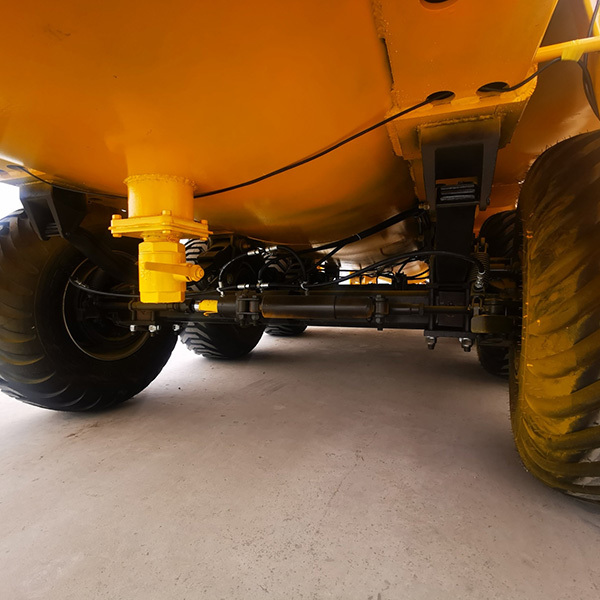

3. Italian imported quality special agricultural vehicle axle, reliable quality, stronger carrying capacity.

4. The tank body integrates a sturdy baffle plate to prevent surging. The maintenance skylight is located at the top of the tank, and the drain port is located at the bottom of the tank.

5. Equipped with a liquid level indicator for users to easily observe the liquid fertilizer capacity.

6. This machine can achieve two fertilizer spreading methods: liquid fertilizer spraying and boom spraying. The boom spraying method arranges the spray hoses in parallel to form a comb-shaped spray bracket, using a vacuum pump to directly deliver the liquid fertilizer stored in the tank to the soil. It is a new type of highly efficient agricultural machinery equipment.

7. This machine has different models with capacities of 8 cubic meters, 12 cubic meters, 16 cubic meters, 20 cubic meters, and 32 cubic meters, and can be matched with horsepower ranging from 80 to 300 horsepower.

Tiansheng Machinery 32 Cubic Meter Tank Truck with Spraying Device Parameters

The liquid fertilizer spreader uses the tractor's rear output shaft (540r/min) as power to drive the vacuum pump. It only requires one set of positioning hydraulic rear output from the tractor to achieve full hydraulic control in the cab, including fertilizer suction, spraying, boom folding, and boom submersion, greatly improving your working environment.

The main pump, main control valve, heavy-duty axle, and auxiliary valve are all imported products, ensuring stability, reliability, and durability. The air brake system ensures driving safety. Taillights and reflectors are installed at the rear, complying with agricultural machinery road safety standards. The liquid level indicator is installed at the front of the tank for easy observation of the tank content changes. A multi-stage overload protection device is designed and installed to protect the main pump, tank, and pipelines. A dedicated muffler is equipped to reduce noise during operation. The tank material is high-strength steel for pressure vessels, and the inside and outside of the tank are sprayed with a coating that has excellent anti-corrosion and acid-alkali resistance, ensuring sufficient tensile strength, impact toughness, and corrosion resistance. The entire tank and chassis are designed as an integrated structure, reducing the weight of the machine while lowering the center of gravity, improving the stability of the machine during operation.
