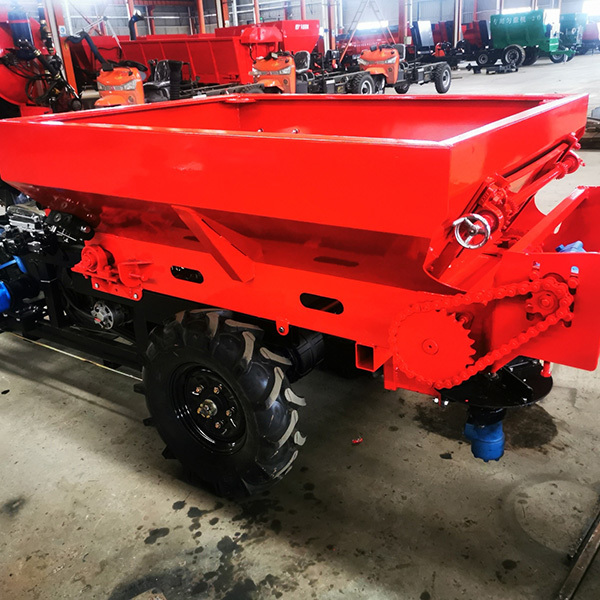

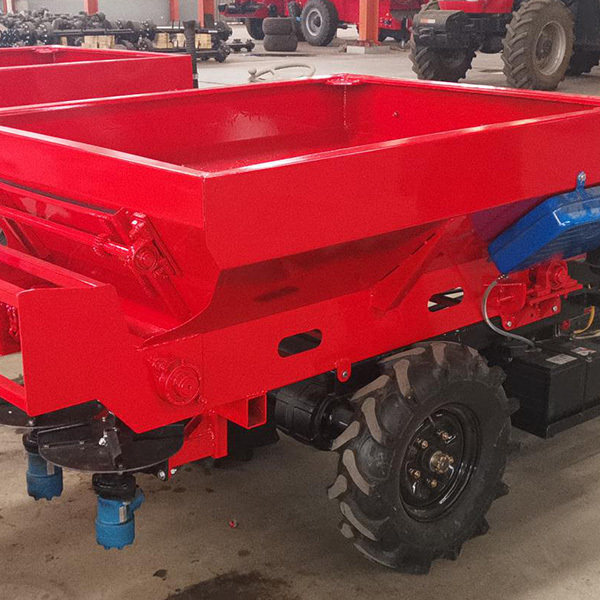

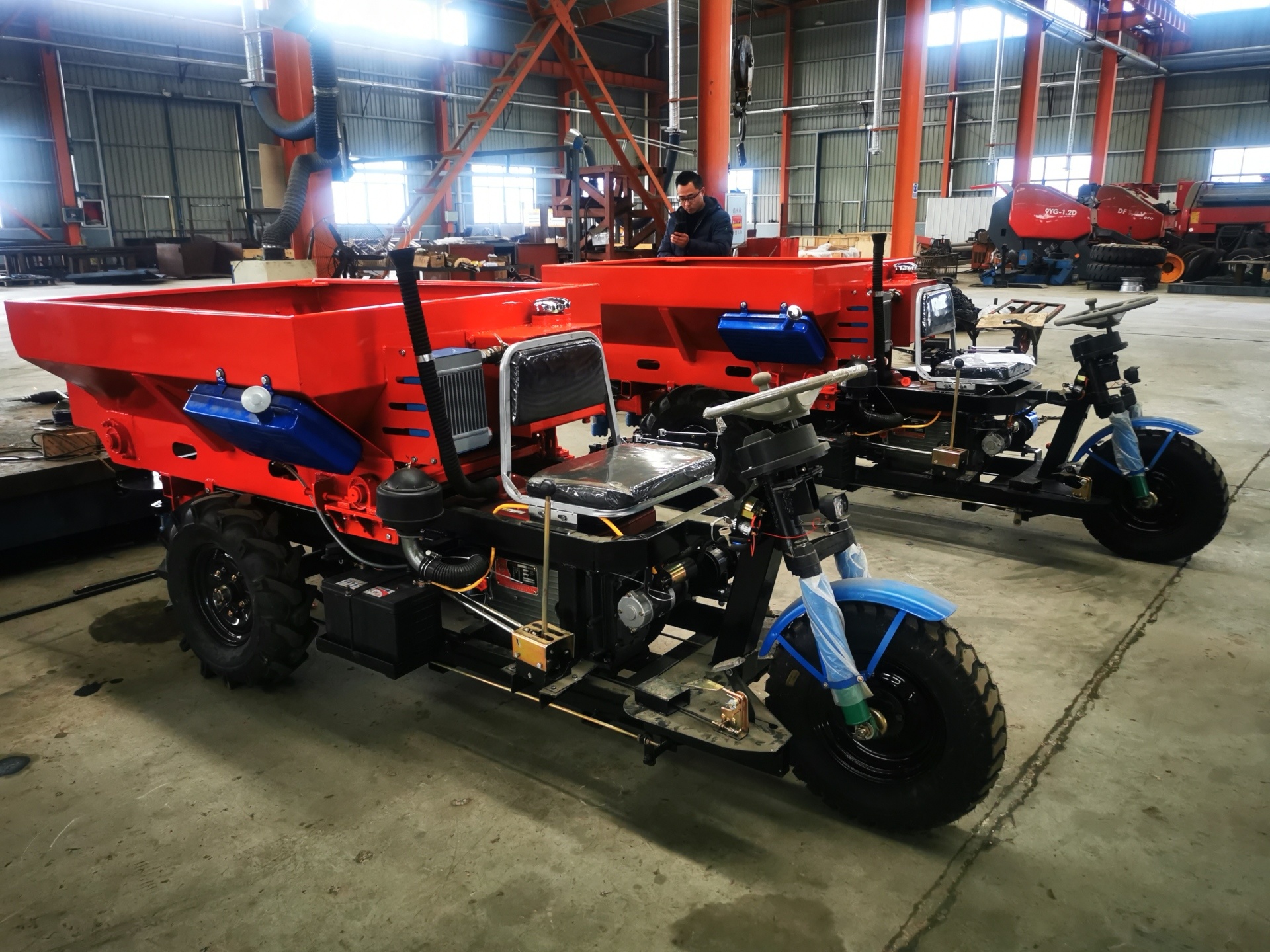

This self-powered three-wheeled fertilizer spreader can perform double-disc broadcasting and direct fertilization. The machine features a compact structure, flexible turning, good passability, and wide applicability, suitable for greenhouses, fields, orchards, and other operating environments.
It adopts a three-wheeled chassis structure and is equipped with a high-power diesel engine, ensuring reliable transportation and fertilization power;
Fertilizer conveying and spreading are controlled hydraulically, allowing adjustment of the feeding speed and amount according to user needs;
Double-disc spreaders and direct fertilization structures can be installed as needed, allowing for both broadcasting of various organic fertilizers and direct fertilization;
Uniform fertilizer spreading, high work efficiency, and significant savings in manual fertilization costs.
|
Model |
Rated Power |
Starting Method |
Front Wheel Model |
Rear Wheel Model |
Overall Dimensions |
Bin Capacity |
Payload |
|
|
2FZGB-1SL Broadcasting Disc Model |
13.24kW (18 horsepower) |
Electric Start |
5.00-12 |
6.00-12 |
3.2×1.2×1.25m |
1 |
1 ton |
|
|
Total Weight |
Spreading Width |
Travel Speed |
Climbing Ability |
Ground Clearance |
Operating Temperature |
System Voltage |
Operating Altitude |
|
|
1100kg |
2-4m |
1.5-15km/h |
40% |
220 mm |
-10℃～40℃ |
12 V |
≤3000 meters |
|
