Serial Number |
Item |
Unit |
Specification |
Data Parameters |
Remarks |
|
1 |
Model Name |
/ |
2FZB-3 |
|
|
|

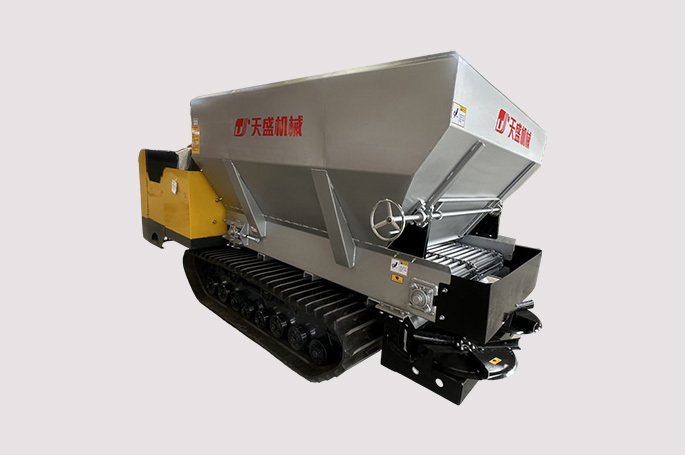

Tracked Self-Propelled Fertilizer Spreader |
|
|
|||
|
2 |
Structural Type |
/ |
Body |
|
|
|
3 |
Operation Method |
/ |
Rear Throw |
|
|
|
4 |
Inner Dimensions of Hopper |
MM |
Length × Width × Height of Upper Part: |
2350*1800*990 MM |
|
|
5 |
Overall Dimensions |
MM |
Front Top Plate - Rear Fence |
4061 |
|
|
Width |
1800 |
|
|||
|
Overall Height |
2600 |
|
|||
|
6 |
Hopper Capacity |
m³ |
Cubic |
3 |
|
|
7 |
Maximum Payload |
kg |
Kilograms |
2500 |
|
|
8 |
Matched Power Value (Range) |
kw |
55 |
|
|
|
9 |
Fertilizer Conveying Method |
/ |
Hydraulic Chain Plate Push |
|
|
|
10 |
Spreading Width |
m |
≥6 |
|
|
|
11 |
Number of Load-Bearing Axles |
/ |
|
|
|
|
12 |
Track Width |
mm |
1300 |
|
|
|
13 |
Track Width |
mm |
450 |
|
|
