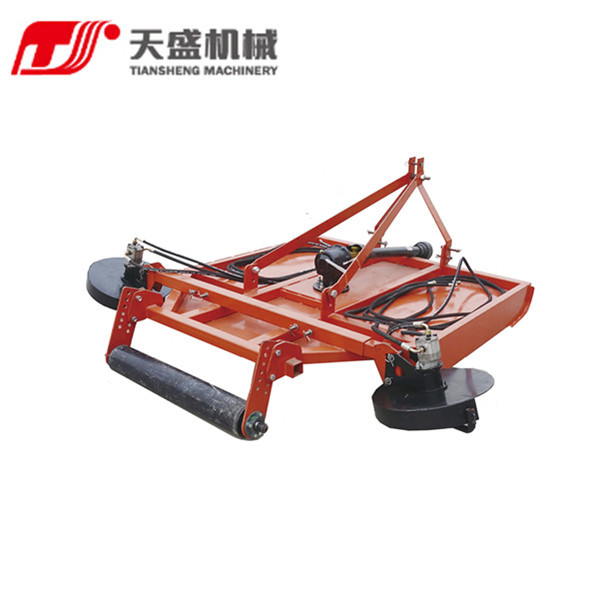

Suitable for orchard inter-row mowing. The central offset is adjustable, and the cutting width can be customized from 1.0 to 3 meters; generally, orchards use a cutting width of less than 2.1 meters. Suitable for pastures and orchards. This product has a three-point suspension and can adjust the mowing height via the support wheel and side plates. The cutter uses 60SR2MN wear-resistant material for the longest service life. It has a small turning radius and is flexible to use.
A reinforced mowing disc can be optionally added according to customer requirements.
The mowing disc's angle can be adjusted manually to achieve ridge operation.
For the simulated mowing disc, the tractor flow rate needs to reach 8~10ml/r for a single-side blade disc motor displacement. Please configure a single-side motor oil supply flow rate of 15~25L/min;
(Poor mowing effect if the displacement is too low; high displacement may damage the motor and cause mechanical harm.)
The attached ground wheel can adjust the cutting height and increase the cutting width.
| Parameters |
Unit
|
9GX-1.0 | 9GX-1.5 | 9GX-1.8 | 9GX-2.1 |
| Cutting Width | M | 10 | 1.5 | 1.8 | 2.1 |
| Cutting Height | CM | 3-15 | 3-15 | 3-15 | 3-15 |
| Weight | KG | 235 | 330 | 440 | 520 |
| Matching Power | HP | 18-30 | 45-60 | 60-70 | 80-90 |
