Large fertilizer spreaders and broadcasters are mainly suitable for pre-cultivation basal fertilizer application, post-cultivation sowing, and seed and fertilizer broadcasting operations in grasslands and pastures. This machine features a compact structure, wide range of applications, high operating efficiency, and uniform broadcasting. This is a large fertilizer spreader, very suitable for use in large farms, grasslands, and pastures, and is being promoted nationwide.
In early 2014, based on the feedback from our customers, we made a significant improvement to this fertilizer spreader to better adapt to various land conditions and meet the needs of different farmers.
It can be used to spread organic fertilizers, animal manure, farmyard manure, and distillers' grains, and can also be promoted for use by road maintenance departments for salt spreading and snow removal.
The gearbox and transmission of this auger fertilizer spreader are both original imports, with excellent quality and reliable performance; the crushing blades are made of boron steel, which is wear-resistant and corrosion-resistant; the conveyor uses high-strength mining circular chain, which is more durable.

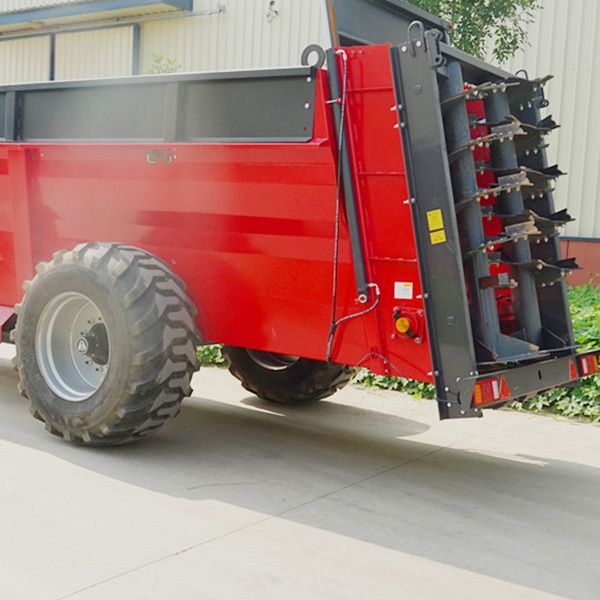

Vertical spiral spreader, strong crushing ability, spreading width of 8-12 meters, even manure and sludge with 80% water content can be spread efficiently.
|
Serial Number |
Item |
Unit |
Specifications |
|
1 |
Model Name |
/ |
2FGH-12S Fertilizer Spreader |
|
2 |
Structural Type |
/ |
Box Type |
|
3 |
Operation Method |
/ |
Rear Throw |
|
4 |
Bin Inner Dimensions (Length × Width × Height) |
mm |
5450×1800×1330 |
|
5 |
Bin Capacity |
m³ |
12 |
|
6 |
Payload |
kg |
12000 |
|
7 |
Matched Power (Range) |
kW |
65-80 |
|
8 |
Spreading Device Type |
/ |
Vertical Double Spiral Spreading |
|
9 |
Fertilizer Conveying Method |
/ |
Hydraulic Chain Plate Push |
|
10 |
Spreading Width |
m |
≥8 |
|
11 |
Number of Load-Bearing Axles |
pcs |
1 |
|
12 |
Wheelbase |
mm |
2200 |
|
13 |
Tire Specifications |
/ |
600/55-26.5 |
|
14 |
Number of Tires |
pcs |
2 |
