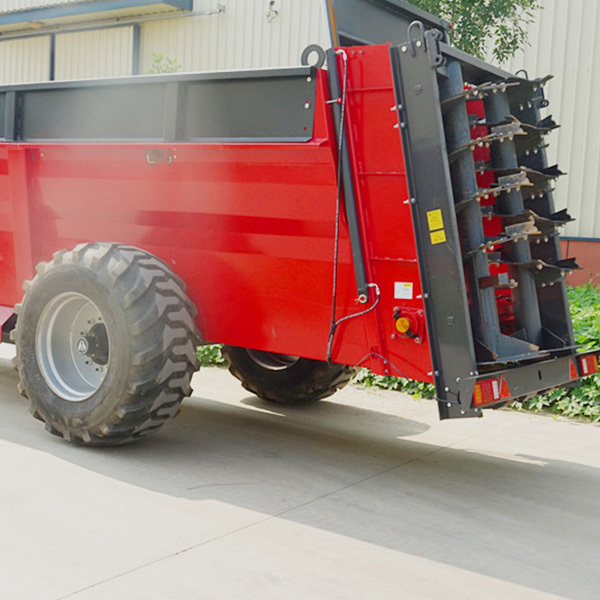

High-quality gearboxes and transmissions, superior quality, reliable performance; crusher blades are made of boron steel, wear-resistant and corrosion-resistant; high-strength mining circular chains are used for conveying, more durable. Vertical spiral spreader, strong crushing ability, spreading width 8-12 meters, even manure and sludge with 80% water content can be spread efficiently. Capacities of 6 cubic meters, 10 cubic meters, and 15 cubic meters are available, with 80-200 horsepower options. A good helper for returning manure to the field.
|
Serial Number |
Item |
Unit |
Specification |
|
1 |
Model Name |
/ |
2FGH-12S Fertilizer Spreader |
|
2 |
Structural Type |
/ |
Box Type |
|
3 |
Operation Method |
/ |
Rear Throw |
|
4 |
Bin Inner Dimensions (Length × Width × Height) |
mm |
5450×1800×1330 |
|
5 |
Bin Capacity |
m³ |
12 |
|
6 |
Maximum Payload |
kg |
12000 |
|
7 |
Matching Power (Range) |
kW |
65-80 |
|
8 |
Spreading Device Type |
/ |
Vertical Double Spiral Spreading |
|
9 |
Fertilizer Conveying Method |
/ |
Hydraulic Chain Plate Pushing |
|
10 |
Spreading Width |
m |
≥8 |
|
11 |
Number of Load-Bearing Axles |
pcs |
1 |
|
12 |
Wheelbase |
mm |
2200 |
|
13 |
Tire Specifications |
/ |
600/55-26.5 |
|
14 |
Number of Tires |
pcs |
2 |
