Adil axles, good braking, sensitive steering, safe and durable
With radiator, extending the service life of hydraulic components.
Hydraulically adjustable chain speed, adjustable fertilizer outlet size.
Wide tires, more even force distribution, no damage to the land.
Adjustable linkage speed, adjustable fertilizer outlet size. One truckload can be spread in three minutes to half an hour. Working efficiency is 20-40 mu per hour.
|
Serial Number |
Item |
Unit |
Parameter |
|
1 |
Model Name |
/ |

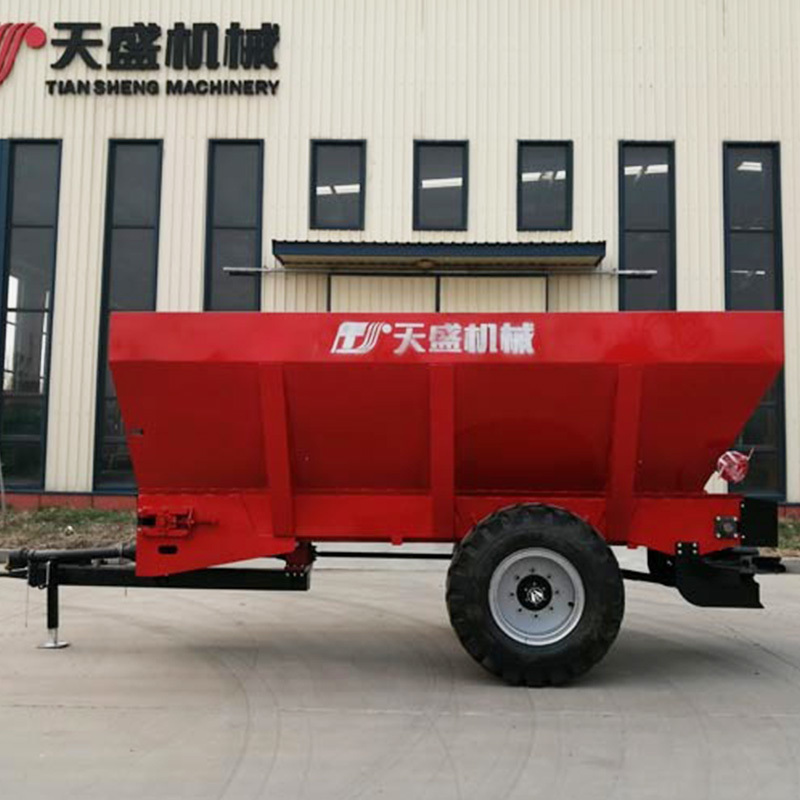

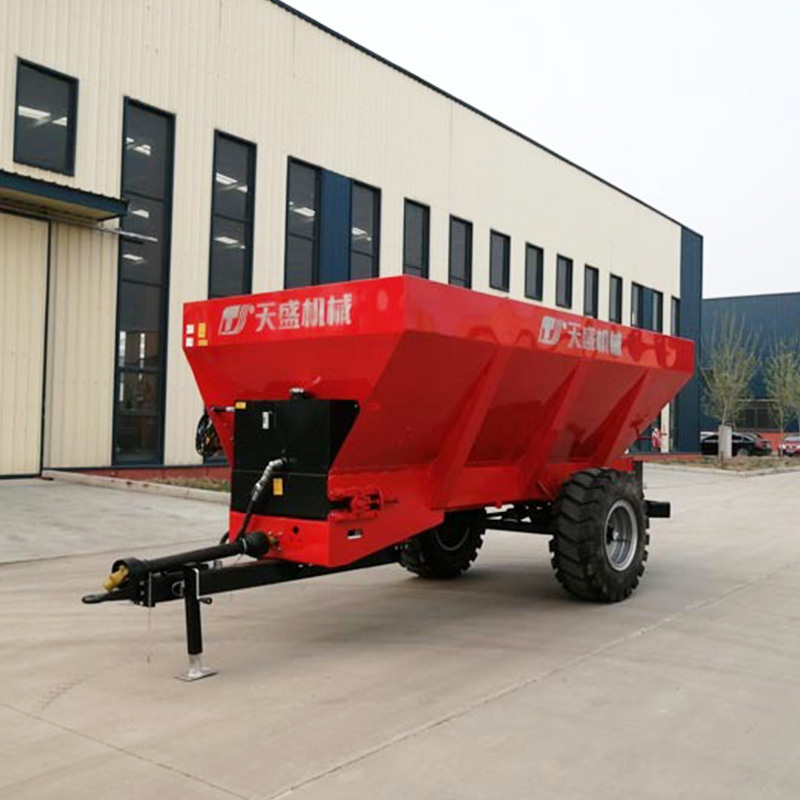

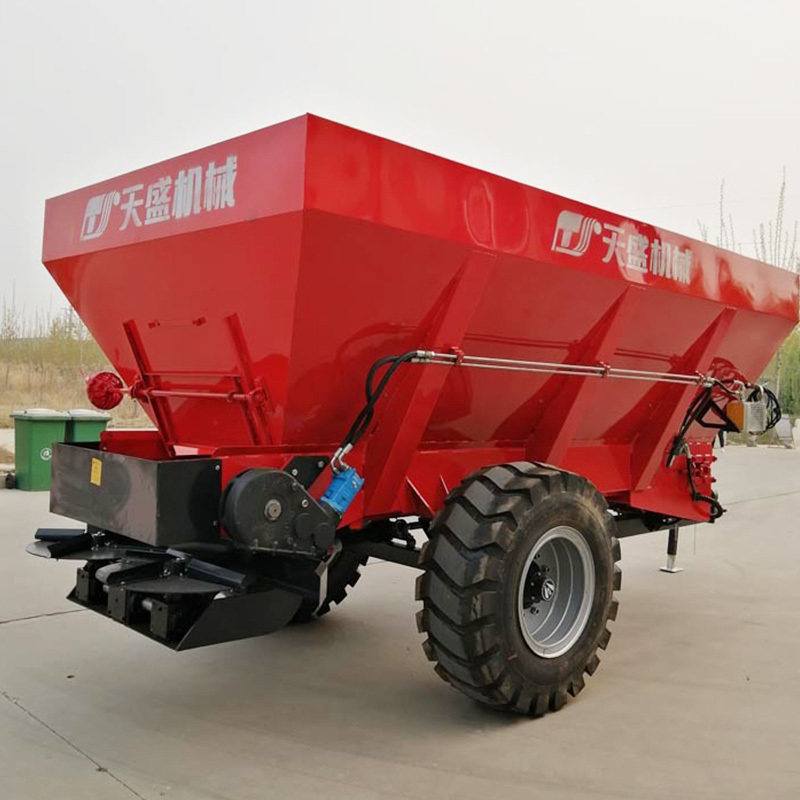

2FGB-8YA Fertilizer Spreader |
|
2 |
Operation Method |
|
Rear Throw |
|
3 |
Type of Spreading Device |
/ |
Rear-mounted double disc spreading |
|
4 |
Fertilizer Conveying Method |
|
Hydraulic chain plate push |
|
5 |
Maximum Load |
kg |
7200 |
|
6 |
Spreading Width |
m |
≥6 |
|
7 |
Hopper Capacity |
m³ |
8 |
|
8 |
Hopper Inner Dimensions (Length × Width × Height) |
mm |
(4194/3324)×(2116/810)×1255 |
|
9 |
Overall Dimensions (Length × Width × Height) |
mm |
5770×2160×2270 |
|
10 |
Wheelbase |
mm |
1710 |
|
11 |
Tire Specifications |
pcs |
16/70-20 |
|
12 |
Matching Tractor Power (Range) |
kw |
55-98 |
|
13 |
PTO Speed |
rpm |
540 |
