Land improvement project fertilizer machine, soil conditioner spreader, large fertilizer spreader

  • Detailed Description

Product Introduction

Autumn Hydraulic Organic Fertilizer and Manure Spreader, Compost Spreader, Tow-type Fertilizer Applicator

Autumn Fertilizer Applicator, Manure Spreader, Fertilizer Applicator for Small Four-wheeled Tractors, Manure Spreader

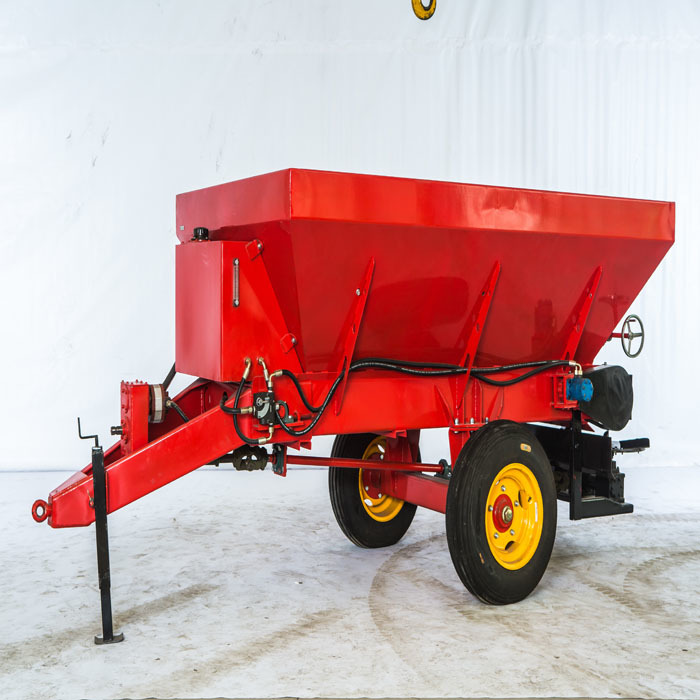

The 2FGB series of large fertilizer spreaders and broadcasters are mainly used for pre-cultivation basal fertilizer application, post-cultivation sowing, and seed and fertilizer broadcasting in grasslands and pastures. This machine features a compact structure, wide range of applications, high operating efficiency, and uniform broadcasting. It is a large fertilizer spreader, very suitable for large farms, grasslands, and pastures, and is being promoted nationwide. In early 2014, based on the feedback from our customers, we made a significant improvement to this fertilizer spreader to better adapt to various land conditions and meet the needs of different farmers. It can be used to spread organic fertilizers, animal manure, farmyard manure, and spent grains, and can also be used by road maintenance departments for salt spreading and snow removal.





Product Features

Large loading capacity; special high-hole design facilitates increased loading capacity;

Humanized design of the discharge port valve allows users to adjust the size of the fertilizer outlet according to their needs;

The valve design controls the conveying speed of the chain. The higher the gear, the faster the chain conveying speed and the greater the fertilizer delivery, and vice versa.

The reducer ensures more stable machine operation, and at a slower fertilizer delivery speed, it can multi-functionally spread powdered fertilizers, granular fertilizers, etc.





Tiansheng Machinery Land Improvement Project Fertilizer Applicator Parameters



Model

Capacity

Overall Weight

Matching Power

Reducer

Broadcasting Width

Tire Model

Overall Dimensions

(Length*Width*Height)

2FGB-1.8Y

1.8m³

960kg

25-50HP

None

6-15m

Two-wheel 10-15

3.8*1.65*1.75m

2FGB-1.8YA

1.8m³

960kg

25-50HP

Yes

6-15m

Two-wheel 10-15

4.35*1.65*1.75m

2FGB-2.5Y

2.5m³

1350kg

30-60HP

None

6-15m

Two-wheel 10-15

4.2*1.8*1.75m

2FGB-2.5YA

2.5m³

1400kg

30-60Hp

Yes

6-15m

Two-wheel 11.2-28

4.8*2.2*1.985m

2FGB-3.8Y

3.8m³

1610kg

50-80HP

Yes

6-15m

Two-wheel 13.6-28

4.8*2.2*2.05m

2FGB-7.6Y

7.6m³

1910kg

80-120HP

Yes

6-15m

Two-wheel 10-20

5.5*2.2*2.25m
